SYNERGY 5 - FACE SYNCHRONISATION - how does it work?

SYNERGY

The synch information can be found in the device's logs in ....\Logs\Horio Web\General\name of the device

  1. When you enrol a face on a device, the template is uploaded to the database:

2023-09-07 17:39:46.4630 Info - EnrollEmployee [44]: Received request to enroll following employees: 2023-09-07 17:39:46.4630 Info - EnrollEmployee [44]: {"EmployeeId":1,"DateEnrolled":638296560000000000,"Templates":null,"Cards":null,"Pin":"1991","IsAdmin":true,"FaceTemplate":{"Id":1,"EmployeeId":1,"Template":"QK83UH/FW/1xNRKI++qLtKsELZw2/np8jiD8DxdEgV2EayPAspMmO7Jw9PNLTJ9mWGYvDscXz5vEBnVKD75bUDP0Gxx1f8h4Hq/qdwkFtEEtMwUA4N8DqxbUFj268WoyWqFyesQDCfcWQgyWqhYnPiVnLtVjYk0pdPbstDSSWuAeiIk5QZlT0s35Z0lDC4pC84Iu2UyxuEMtSwt441UqJF8ZULfdUjQClviNZ3me+zUwWIDD4fTjkfe6Q2jXfUawnflPQOmw1gS7jWtbExqmUIdUxXRSia0GQoatZk7w1LlDIbanJLQHOmYI7U6rkzddumDJyLzwc/cfIy83VBTZ9w==","TemplateStr":"QK83UH/FW/1xNRKI++qLtKsELZw2/np8jiD8DxdEgV2EayPAspMmO7Jw9PNLTJ9mWGYvDscXz5vEBnVKD75bUDP0Gxx1f8h4Hq/qdwkFtEEtMwUA4N8DqxbUFj268WoyWqFyesQDCfcWQgyWqhYnPiVnLtVjYk0pdPbstDSSWuAeiIk5QZlT0s35Z0lDC4pC84Iu2UyxuEMtSwt441UqJF8ZULfdUjQClviNZ3me+zUwWIDD4fTjkfe6Q2jXfUawnflPQOmw1gS7jWtbExqmUIdUxXRSia0GQoatZk7w1LlDIbanJLQHOmYI7U6rkzddumDJyLzwc/cfIy83VBTZ9w=="}}]2023-09-07 17:39:46.9557 Info - EnrollEmployee [44]: Enrolling EmpId 1 - success

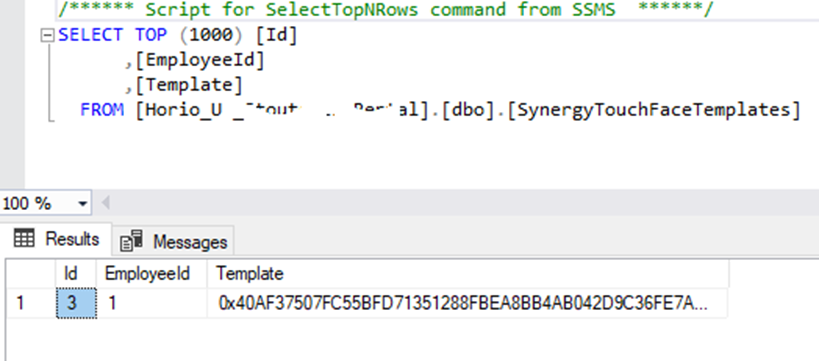

The template is stored in this table:

  1. Then the template is uploaded to all devices online the employee is allowed to use including the device where the face was enrolled

The device log shows:

2023-09-07 17:40:42.8247 Info - GetSyncJob [37]: Need to sync employees 2023-09-07 17:40:53.2063 Info - GetEmployees [50]: Sending the following employees to device 2023-09-07 17:40:53.2063 Info - GetEmployees [50]: 1 Jerry Synel 2023-09-07 17:40:53.5953 Info - AckEmployees [80]: Server acknowledges these employees were synced: [{"EmployeeId":1,"SyncTaskId":422}] 2023-09-07 17:40:53.8326 Info - GetEmployeesToDelete [68]: Sending the following employees to device 2023-09-07 17:40:53.8326 Info - GetEmployeesToDelete [68]:

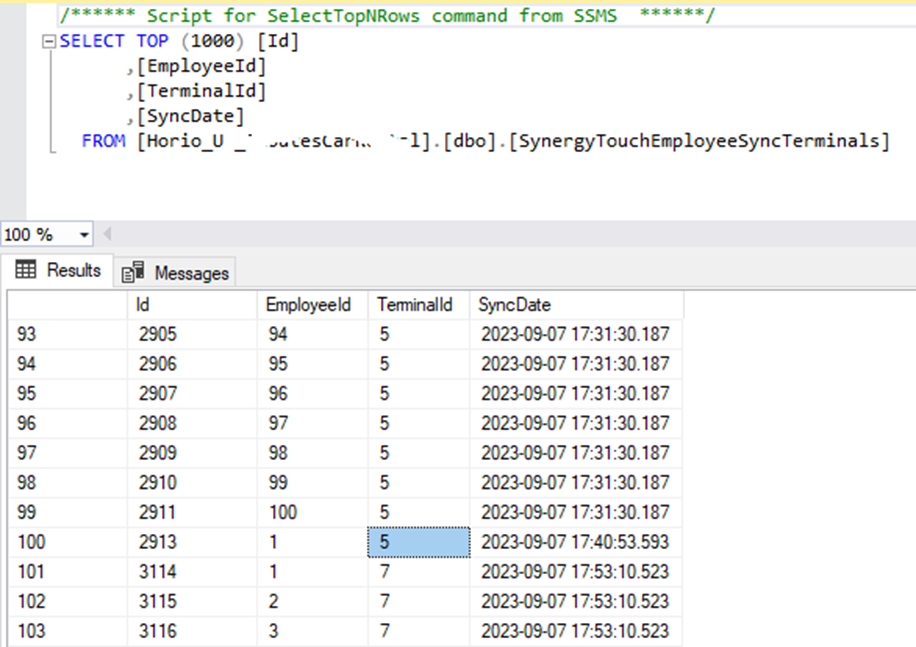

It is also visible in this table:

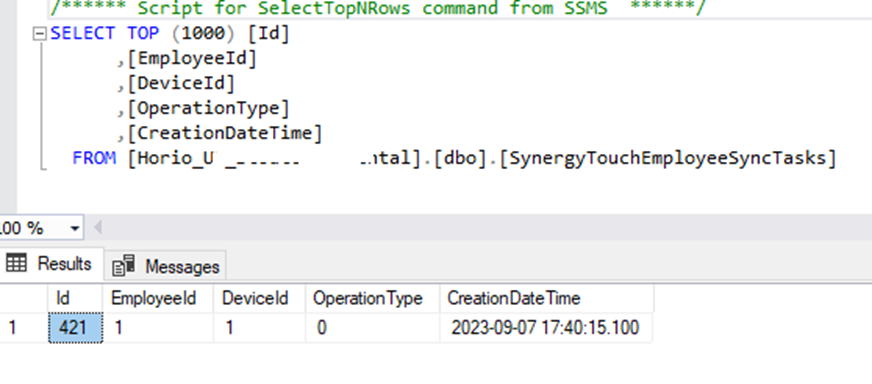

  1. Devices needing to be synch

This table shows devices that need to be synched - usually when the device is not online

  1. you can use the 3 reports attached to view the content of those 3 tables from SWF (import them in SWF/REPORT BUILDER
