Door goes green but doesn't open relay on Suprema after 4.2

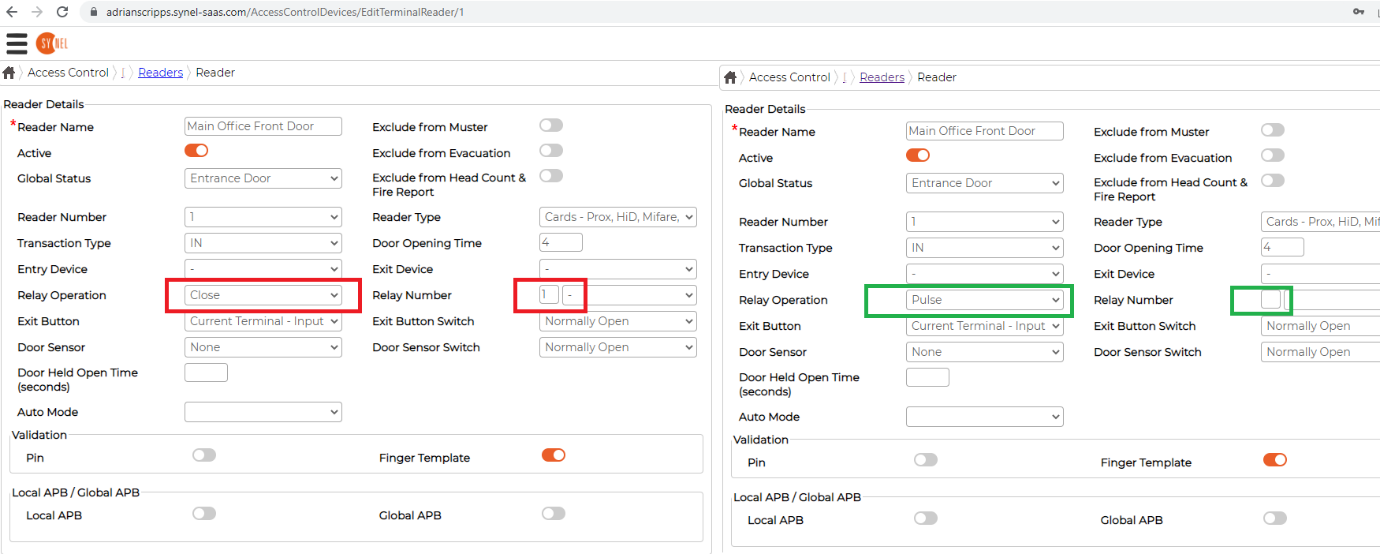

If the Door registers a pass and event is recorded but doesn't open the relay on 4.2 or higher check the relay definition and set the box blank if it currently reads as 1 for the internal relay and not a secure IO
