Biometrics & Enrolment

SY7xx Devices - Maintenance Screen

Also covers: SY400 Devices - Maintenance Screen

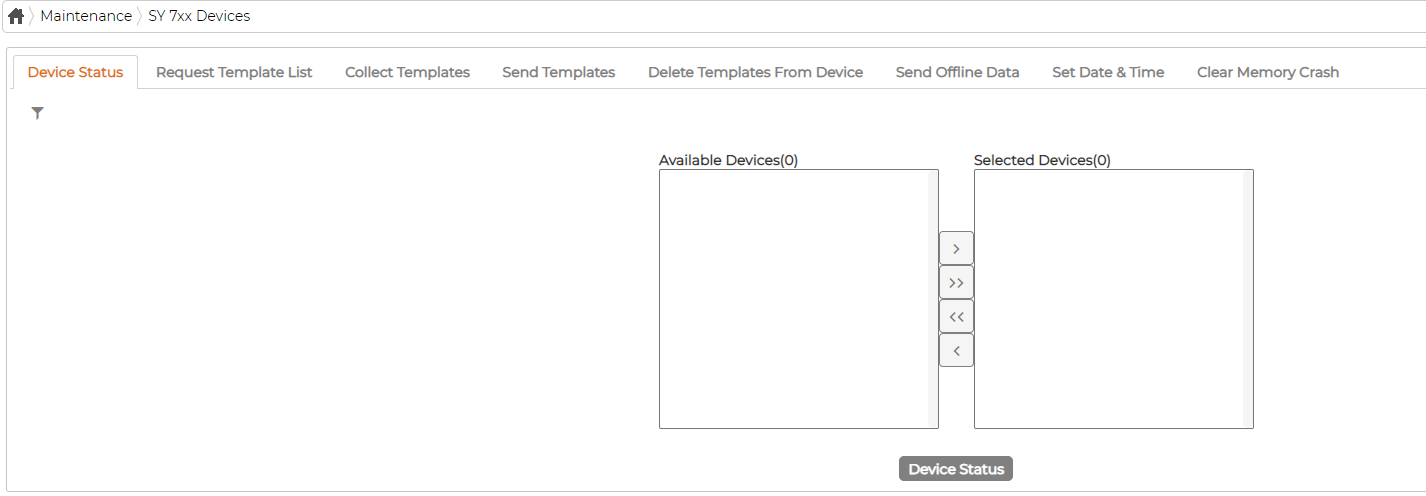

Menu - Maintenance - SY7xx Devices screen allows:

1. Device Status - Contacts each device selected to check communication and the status readout of the memory buffer.

2. Request Template List - Returns a list of all staff with a Finger template stored in the device.

3. Collect Templates - Returns the encrypted template for selected staff enrolled directly on the devices Finger scanner and saves it to their record in the database.

4. Send Templates - Sends the encrypted template for selected staff from the database to the devices Finger scanner.

5. Delete Templates From the Device - Removes the selected employees' template from the devices Finger scanner.

6. Send Offline Data - Updates the tables which hold Card and Template info for employees allowed to use this device to be used in the event of contact being lost from the server.

7. Set Date & Time - Clocks usually sync time with the server but this allows the initial time to be set manually

8. Clear Memory Crash - Clears the memory crash and resets device to factory default
